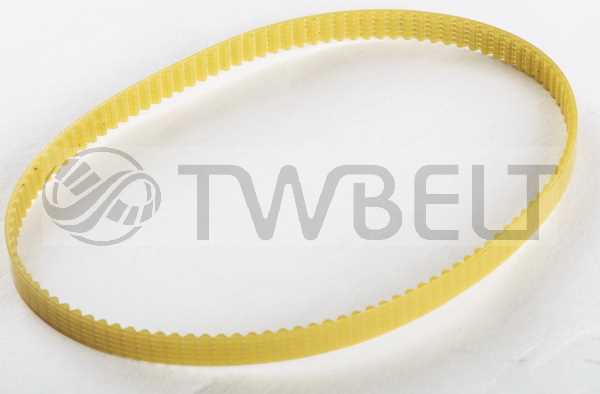

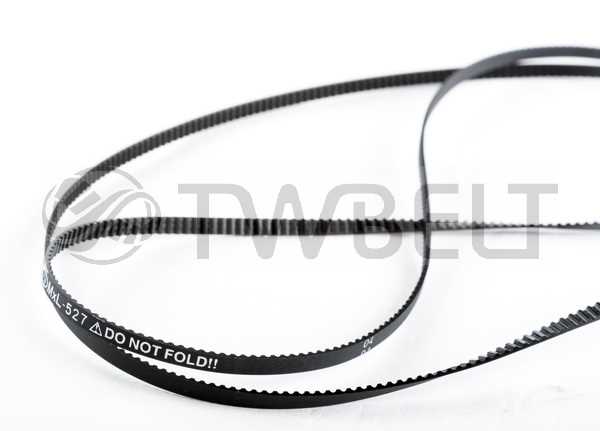

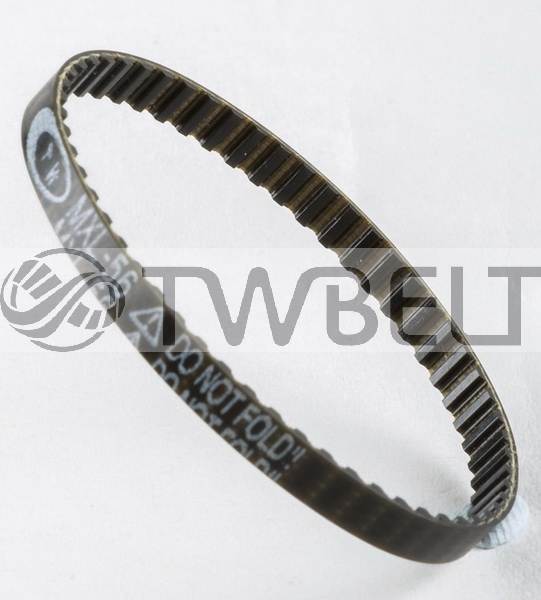

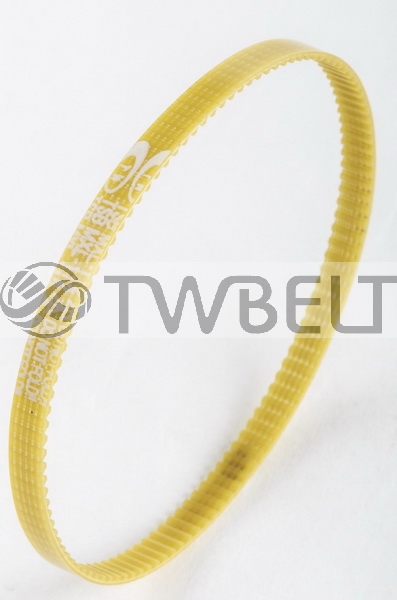

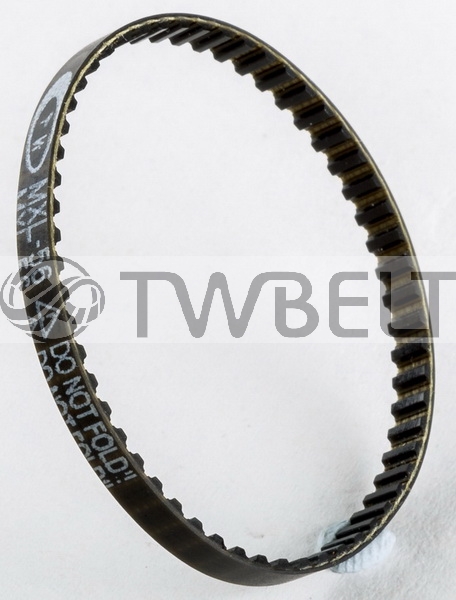

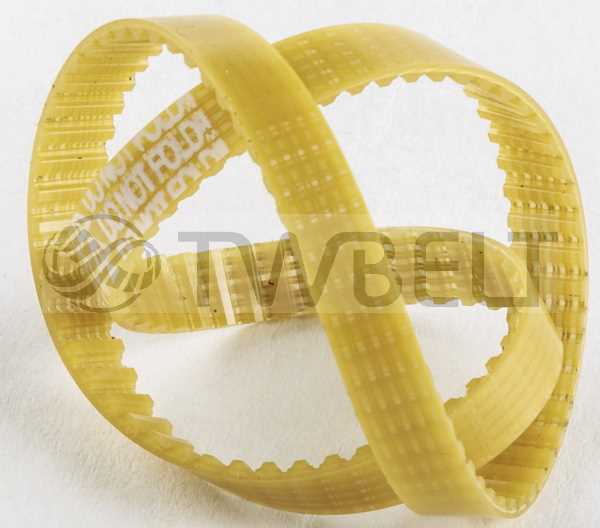

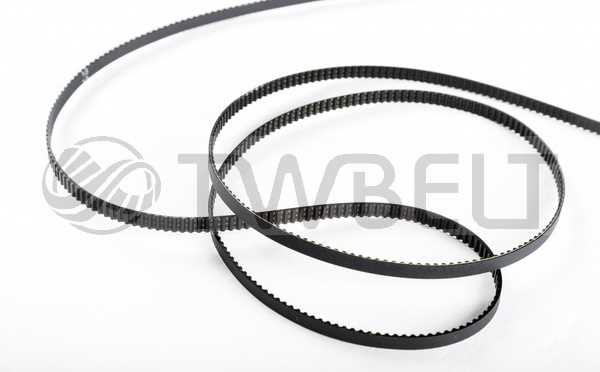

                  • MXL
                    • Features
                    • *These classic trapezoidal teeth used in the US and Europe are the original timing belt tooth design.

                      * The tooth profile is relatively low and a big surface area at the tip of the tooth providing good contacting area to transmission equipment.

                      * This thin and light design can be used in small diameter pulleys, i.e. tiny precision instrument.
                    • Facebook
                    • Plurk
                    • Twitter

                  • Inquiry

          • Introduction
          • Belt Specification
          • Pulley Specifications

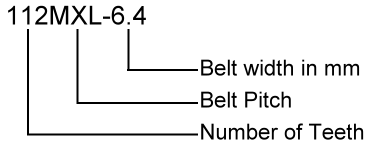

          • Ordering example

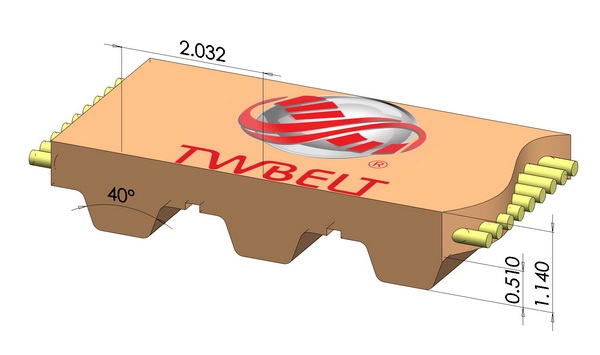

            • Structure:

              Back Hard-wearing PU backing protects cords from exposing at belts edges. Also belts are thin enough to lower heat and increase belt life. Body Highly flexible polyurethane (PU). Because of the casting method and the capillary effect, allowing the superior bonding with tensile cords. Integrally formed profiles, providing belts with accuracy and strength. Tooth Hard-wearing and tough PU teeth and backing are integrally formed and resistant to break. For this reason, cords are completely protected. The teeth rigidity and strength enhance shear resistance against tooth slip. Tensile cords Galvanized steel cord and aramid tensile members are available. A: steel cord It will not stretch or fatigue during continuous operation, providing tooth shear strength and load capacity under shock applications. Stainless steel cord is also available and particularly suitable in the erodent environment. B: aramid fiber Since aramid tensile cord combines extraordinary strength and superior shock load capacity, it is flexible and counterbending; therefore, it is favorable for oridinary or non- magnatic driver. Compard with steel cord, lightweight is characteristic of aramid fiber.

              ● Cleanness
                High wear resistant PU minimizes dusting and is especially suitable for clean rooms, food and beverage industry.
              ● Non-Slip
                Belts teeth mesh with pulleys, assuring the smooth transmission against tooth jump, friction and speed variation.
              ● Free of Maintenance
                Compared with chains or gears, the cost of lubrication and maintenance is few.
              ● Low Pre-tension
                Only low initial tensioning, motor and bearing loads are minimized, enjoying longer belt life.

              ●

              		 Constant Tension
                No retensioning required.
              ●

              A wide Range of Load Capacities and Speeds

              • Speeds range from 0 to over 20000 RPM.
              • Ideal for low, medium and high power range. For example, sustained transmission of high torque level at low speed, high power transmission at high speed or shock loads.
              • High degree of efficiency: allows friction-free drives with an efficiency of 99% and also lowering the operation costs.
              ● Dimensional Stability
                Excellent structure and bonding , constant belt thickness and width enable smooth running.
              ●

              Oil Resistance
                Conditionally resistant to oils, grease and fuel.
              ●

              Temperature Range
                Under room temperature, it is from -20°C to 95°C.
              ● Climate Resistance

              • Suitable for tropical climates.
              • Resistant to aging, ozone, hydrolysis and UV.
              ● Bending Resistance

              • Special and high quality component.
              • Belts are suitable for bending applications.
              ● Environmental Friendly

              • Certificated by RoHS compliance.
              • Low dusting, provided non-marking structure.
              • Free carbon black.
              ● Antistatic

              • Antistatic belt is made-to-order
              • The whole one is electronically conductive and conforms to ≤ 109 Ω
              • Resistance remains steady and will not lower following a long-run operation
              ● Acid and Alkali Resistance
                Conditionally resistant to acid and alkali
              ● Wear Resistance
                Ten times higher than rubber belts.
              ● Anti-solvent
                Conditionally anti-solvent.
              ● Hardness
                Standard hardness is 83 Shore A. 60, 73, 78, 90 and 95 Shore A are made-to-order.
              ● Minimal space and weight
                High power rate transmission allows the use of small pulley diameters and short center distances. This enables compact and light-weight drives
              ● Various specifications

              • A wide range of pitches, profiles and width are available.
              • Customized width enables the costs down.
              ● Applications

              • The property of timing belt is precision. All pitches of the whole belt are reached high accuracy. Therefore, it is ideal for high torque transmission,  linear positioning, smooth running and high rotational speeds.
              • Small pitches are ideal for smooth operation and precision positioning under light load.
              ● Large pitches are suitable for large transmission ratios, positional and angular accuracy, and synchronous conveying. For instances:

              • Automatic sliding doors
              • Material flow
              • At low temperatures, in clean rooms and in the food industry
              • Office machinery: printers, plotters, copiers
              • EDP equipment
              • Textile machinery
              • Wood processing machinery
              • Machine tools
              • Pumps
              • Compressors
              • Monery handling
              • Data storage equipment
              • Medical equipment
              • Food processors
              • DC stepper/ servo
              • Centrifuge
              • Vending machines
              • Vacuum cleaners











            • Should you wish to place an order, please contact us!

              SPEC. Length Teeth PU   SPEC. Length Teeth PU   SPEC. Length Teeth PU   SPEC. Length Teeth PU
              30MXL 60.96 30 　   123MXL 249.94 123 ✔   256MXL 520.19 256     448MXL 910.34 448
              34MXL 69.09 34 　   124MXL 251.97 124 ✔   260MXL 528.32 260 ✔   449MXL 912.37 449
              35MXL 71.12 35 　   125MXL 254.00 125 　   262MXL 532.38 262     453MXL 920.50 453
              36MXL 73.15 36 　   126MXL 256.03 126 ✔   265MXL 538.48 265 ✔   454MXL 922.53 454
              37MXL 75.18 37 　   127MXL 258.06 127 　   267MXL 542.54 267     458MXL 930.66 458
              39MXL 79.25 39 ✔   128MXL 260.10 128 ✔   270MXL 548.64 270     463MXL 940.82 463 　
              40MXL 81.28 40 　   129MXL 262.13 129 　   271MXL 550.67 271     464MXL 942.85 464 　
              41MXL 83.31 41 　   130MXL 264.16 130 ✔   273MXL 554.74 273     466MXL 946.91 466 　
              42MXL 85.34 42 　   131MXL 266.19 131 　   275MXL 558.80 275     468MXL 950.98 468 　
              45MXL 91.44 45 　   132MXL 268.22 132 ✔   276MXL 560.83 276     472MXL 959.10 472 　
              46MXL 93.47 46 　   133MXL 270.26 133 　   277MXL 562.86 277     473MXL 961.14 473 　
              48MXL 97.54 48 ✔   134MXL 272.29 134 　   278MXL 564.90 278 　   475MXL 965.20 475 　
              49MXL 99.57 49 　   135MXL 274.32 135 　   279MXL 566.93 279 　   478MXL 971.30 478 　
              50MXL 101.60 50 　   136MXL 276.35 136 ✔   280MXL 568.96 280 ✔   482MXL 979.42 482 　
              51MXL 103.63 51 ✔   137MXL 278.38 137 　   281MXL 570.99 281 　   483MXL 981.46 483 　
              52MXL 105.66 52 　   138MXL 280.42 138 ✔   285MXL 579.12 285 　   485MXL 985.52 485
              53MXL 107.70 53 　   139MXL 282.45 139 　   288MXL 585.22 288 　   487MXL 989.58 487 　
              54MXL 109.73 54 　   140MXL 284.48 140 ✔   290MXL 589.28 290 　   488MXL 991.62 488 　
              55MXL 111.76 55 　   142MXL 288.54 142 ✔   295MXL 599.44 295 　   490MXL 995.68 490 　
              56MXL 113.79 56 ✔   144MXL 292.61 144 ✔   298MXL 605.54 298 　   492MXL 999.74 492 　
              57MXL 115.82 57 　   145MXL 294.64 145 　   300MXL 609.60 300 　   497MXL 1009.90 497 　
              58MXL 117.86 58 　   147MXL 298.70 147 　   303MXL 615.70 303 　   498MXL 1011.94 498 　
              59MXL 119.89 59 　   148MXL 300.74 148 　   305MXL 619.76 305 　   500MXL 1016.00 500 　
              60MXL 121.92 60 ✔   149MXL 302.77 149 　   308MXL 625.86 308 　   504MXL 1024.13 504 　
              61MXL 123.95 61 　   150MXL 304.80 150 ✔   310MXL 629.92 310 　   505MXL 1026.16 505 　
              62MXL 125.98 62 　   151MXL 306.83 151 　   312MXL 633.98 312 　   516MXL 1048.51 516 　
              63MXL 128.02 63 　   152MXL 308.86 152 　   315MXL 640.08 315 　   522MXL 1060.70 522 　
              64MXL 130.05 64 　   153MXL 310.90 153 　   318MXL 646.18 318 　   527MXL 1070.86 527 ✔
              65MXL 132.08 65 　   154MXL 312.93 154 　   320MXL 650.24 320 　   532MXL 1081.02 532 　
              67MXL 136.14 67 ✔   155MXL 314.96 155 ✔   323MXL 656.34 323 　   535MXL 1087.12 535 　
              68MXL 138.18 68 　   156MXL 316.99 156 ✔   324MXL 658.37 324 　   537MXL 1091.18 537 　
              69MXL 140.21 69 　   157MXL 319.02 157 　   326MXL 662.43 326 　   540MXL 1097.28 540 　
              70MXL 142.24 70 　   158MXL 321.06 158 ✔   328MXL 666.50 328 　   541MXL 1099.31 541 　
              71MXL 144.27 71 　   160MXL 325.12 160 ✔   330MXL 670.56 330 　   543MXL 1103.38 543 　
              72MXL 146.30 72 　   162MXL 329.18 162 ✔   332MXL 674.62 332 　   546MXL 1109.47 546 　
              73MXL 148.34 73 　   163MXL 331.22 163 　   333MXL 676.66 333 　   548MXL 1113.54 548 　
              74MXL 150.37 74 　   165MXL 335.28 165 ✔   334MXL 678.69 334 　   550MXL 1117.60 550 　
              75MXL 152.40 75  ✔   166MXL 337.31 166 ✔   336MXL 682.75 336 　   557MXL 1131.82 557 　
              76MXL 154.43 76 ✔   167MXL 339.34 167 　   337MXL 684.78 337 　   570MXL 1158.24 570 　
              77MXL 156.46 77 　   169MXL 343.41 169 　   339MXL 688.85 339 　   571MXL 1160.27 571 　
              78MXL 158.50 78 　   170MXL 345.44 170 ✔   340MXL 690.88 340 　   579MXL 1176.53 579 　
              79MXL 160.53 79 　   171MXL 347.47 171 　   342MXL 694.94 342 　   591MXL 1200.91 591 　
              80MXL 162.56 80 　   175MXL 355.60 175 ✔   343MXL 696.98 343 　   592MXL 1202.94 592 　
              81MXL 164.59 81 　   177MXL 359.66 177 　   344MXL 699.01 344 　   599MXL 1217.17 599 　
              82MXL 166.62 82 　   180MXL 365.76 180 ✔   347MXL 705.10 347 　   612MXL 1243.58 612 　
              83MXL 168.66 83 　   184MXL 373.89 184 ✔   350MXL 711.20 350     648MXL 1316.74 648 　
              84MXL 170.69 84 　   185MXL 375.92 185 　   352MXL 715.26 352 　   650MXL 1320.80 650 　
              85MXL 172.72 85 ✔   186MXL 377.95 186 ✔   354MXL 719.33 354 　   697MXL 1416.30 697 ✔
              86MXL 174.75 86 　   190MXL 386.08 190 ✔　   355MXL 721.36 355 　   1250MXL 2540.00 1250 　
              87MXL 176.78 87 ✔   192MXL 390.14 192 　   356MXL 723.39 356 　   1426MXL 2897.63 1426 　
              88MXL 178.82 88 ✔   193MXL 392.18 193 ✔   360MXL 731.52 360 　   1463MXL 2972.82 1463 　
              89MXL 180.85 89 ✔   194MXL 394.21 194 　   363MXL 737.62 363 　   1516MXL 3080.51 1516 　
              90MXL 182.88 90 ✔   195MXL 396.24 195 　   365MXL 741.68 365 　   1520MXL 3088.64 1520 　
              91MXL 184.91 91 　   196MXL 398.27 196 　   370MXL 751.84 370 ✔
              92MXL 186.94 92 ✔   198MXL 402.34 198 　   390MXL 792.48 390 ✔
              93MXL 188.98 93 ✔   199MXL 404.37 199 　   397MXL 806.70 397 ✔
              94MXL 191.01 94 　   200MXL 406.40 200 ✔   400MXL 812.80 400 ✔
              95MXL 193.04 95 ✔   203MXL 412.50 203 　   402MXL 816.86 402 　
              96MXL 195.07 96 ✔   204MXL 414.53 204 　   403MXL 818.90 403 　
              97MXL 197.10 97 ✔   205MXL 416.56 205 　   405MXL 822.96 405 　
              98MXL 199.14 98 ✔   208MXL 422.66 208 　   408MXL 829.06 408 　
              99MXL 201.17 99 　   210MXL 426.72 210 ✔   410MXL 833.12 410 　
              100MXL 203.20 100 　   212MXL 430.78 212 ✔   412MXL 837.18 412 　
              101MXL 205.23 101 　   221MXL 449.07 221 ✔   413MXL 839.22 413 　
              102MXL 207.26 102 ✔   227MXL 461.26 227 　   416MXL 845.31 416 ✔
              105MXL 213.36 105 ✔   228MXL 463.30 228 　   417MXL 847.34 417 　
              106MXL 215.39 106 ✔   229MXL 465.33 229 　   419MXL 851.41 419 　
              108MXL 219.46 108 ✔   230MXL 467.36 230 　   420MXL 853.44 420 ✔
              109MXL 221.49 109 ✔   232MXL 471.42 232 　   421MXL 855.47 421 　
              110MXL 223.52 110 ✔   234MXL 475.49 234 　   424MXL 861.57 424 　
              112MXL 227.58 112 ✔   235MXL 477.52 235 ✔   425MXL 863.60 425 　
              113MXL 229.62 113 ✔   236MXL 479.55 236 　   427MXL 867.66 427 　
              114MXL 231.65 114 ✔   239MXL 485.65 239 　   430MXL 873.76 430 　
              115MXL 233.68 115 　   240MXL 487.68 240 ✔   431MXL 875.79 431 　
              116MXL 235.71 116 ✔   243MXL 493.78 243 　   432MXL 877.82 432 　
              117MXL 237.74 117 ✔   245MXL 497.84 245 ✔   434MXL 881.89 434 ✔
              118MXL 239.78 118 ✔   246MXL 499.87 246 　   436MXL 885.95 436 　
              119MXL 241.81 119 ✔   248MXL 503.94 248 　   438MXL 890.02 438 　
              120MXL 243.84 120 ✔   249MXL 505.97 249 　   440MXL 894.08 440 　
              121MXL 245.87 121 　   250MXL 508.00 250 　   442MXL 898.14 442 　
              122MXL 247.90 122 ✔   251MXL 510.03 251 　   444MXL 902.21 444 　
                        255MXL 518.16 255 　   447MXL 908.30 447 　
                              　         　
                              　         　
                              　         　

            • Belt pulleys are made to order. Standard specification sheets are availible in “Download” area. For further information, please contact us.

              A Type AF Type B Type BF Type
              Tooth PD OD   Tooth PD OD   Tooth PD OD
              10 6.47 5.96   65 42.04 41.53   120 77.62 77.11
              11 7.11 6.61   66 42.69 42.18   121 78.26 77.76
              12 7.76 7.25   67 43.34 42.83   122 78.91 78.40
              13 8.41 7.90   68 43.98 43.47   123 79.56 79.05
              14 9.06 8.55   69 44.63 44.12   124 80.20 79.70
              15 9.70 9.19   70 45.28 44.77   125 80.85 80.34
              16 10.35 9.84   71 45.92 45.42   126 81.50 80.99
              17 11.00 10.49   72 46.57 46.06   127 82.14 81.64
              18 11.64 11.13   73 47.22 46.71   128 82.79 82.28
              19 12.29 11.78   74 47.86 47.36   129 83.44 82.93
              20 12.94 12.43   75 48.51 48.00   130 84.08 83.58
              21 13.58 13.07   76 49.16 48.65   131 84.73 84.22
              22 14.23 13.72   77 49.80 49.30   132 85.38 84.87
              23 14.88 14.37   78 50.45 49.94   133 86.03 85.52
              24 15.52 15.02   79 51.10 50.59   134 86.67 86.16
              25 16.17 15.66   80 51.74 51.24   135 87.32 86.81
              26 16.82 16.31   81 52.39 51.88   136 87.97 87.46
              27 17.46 16.96   82 53.04 52.53   137 88.61 88.10
              28 18.11 17.60   83 53.68 53.18   138 89.26 88.75
              29 18.76 18.25   84 54.33 53.82   139 89.91 89.40
              30 19.40 18.90   85 54.98 54.47   140 90.55 90.04
              31 20.05 19.54   86 55.63 55.12   141 91.20 90.69
              32 20.70 20.19   87 56.27 55.76   142 91.85 91.34
              33 21.34 20.84   88 56.92 56.41   143 92.49 91.99
              34 21.99 21.48   89 57.57 57.06   144 93.14 92.63
              35 22.64 22.13   90 58.21 57.70   145 93.79 93.28
              36 23.29 22.78   91 58.86 58.35   146 94.43 93.93
              37 23.93 23.42   92 59.51 59.00   147 95.08 94.57
              38 24.58 24.07   93 60.15 59.64   148 95.73 95.22
              39 25.23 24.72   94 60.80 60.29   149 96.37 95.87
              40 25.87 25.36   95 61.45 60.94   150 97.02 96.51
              41 26.52 26.01   96 62.09 61.59   　 　 　
              42 27.17 26.66   97 62.74 62.23   　 　 　
              43 27.81 27.30   98 63.39 62.88   　 　 　
              44 28.46 27.95   99 64.03 63.53   　 　 　
              45 29.11 28.60   100 64.68 64.17   　 　 　
              46 29.75 29.25   101 65.33 64.82   　 　 　
              47 30.40 29.89   102 65.97 65.47   　 　 　
              48 31.05 30.54   103 66.62 66.11   　 　 　
              49 31.69 31.19   104 67.27 66.76   　 　 　
              50 32.34 31.83   105 67.91 67.41   　 　 　
              51 32.99 32.48   106 68.56 68.05   　 　 　
              52 33.63 33.13   107 69.21 68.70   　 　 　
              53 34.28 33.77   108 69.86 69.35   　 　 　
              54 34.93 34.42   109 70.50 69.99   　 　 　
              55 35.57 35.07   110 71.15 70.64   　 　 　
              56 36.22 35.71   111 71.80 71.29   　 　 　
              57 36.87 36.36   112 72.44 71.93   　 　 　
              58 37.51 37.01   113 73.09 72.58   　 　 　
              59 38.16 37.65   114 73.74 73.23   　 　 　
              60 38.81 38.30   115 74.38 73.87   　 　 　
              61 39.46 38.95   116 75.03 74.52   　 　 　
              62 40.10 39.59   117 75.68 75.17   　 　 　
              63 40.75 40.24   118 76.32 75.82   　 　 　
              64 41.40 40.89   119 76.97 76.46   　 　 　



            • 112MXL-6.4

    • Back to Top
    • Taiwan Synchronous Belt Co., Ltd.
    • TEL：+886-4-26817337　　FAX：+886-4-2681-7339　　E-mail：sales@twbelt.com
      ADD：No.58, Gong 9th Rd., Dajia Dist., Taichung City 43769, Taiwan (R.O.C.)　　© 2013 Taiwan Synchronous Belt Co., Ltd. All Rights Reserved.
