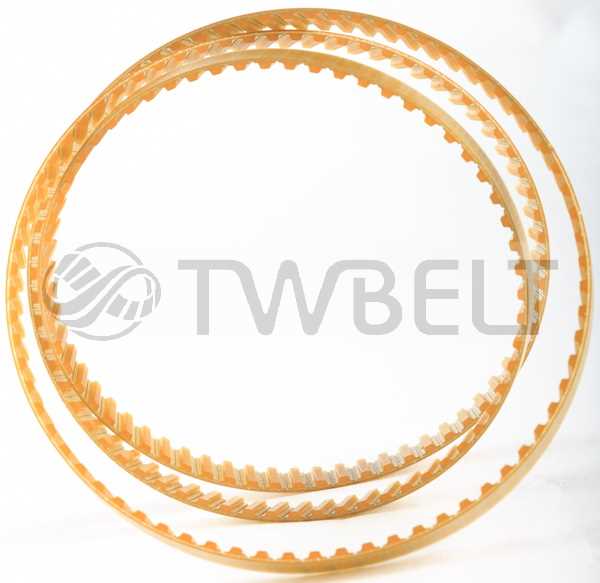

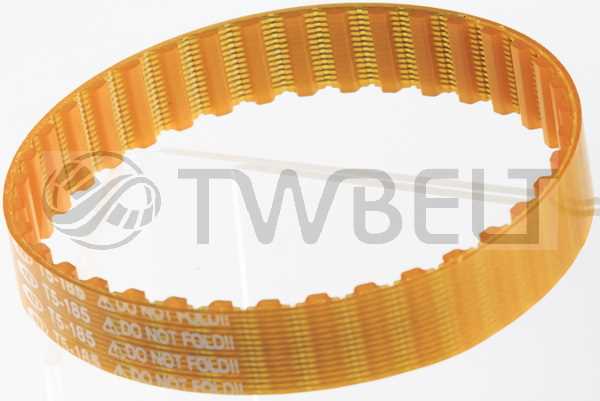

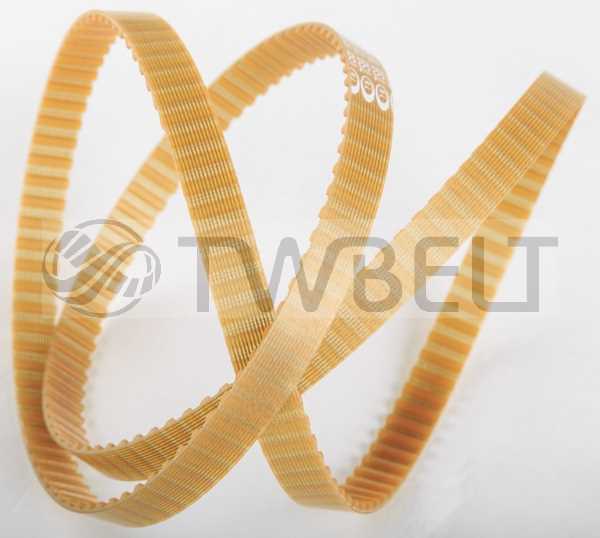

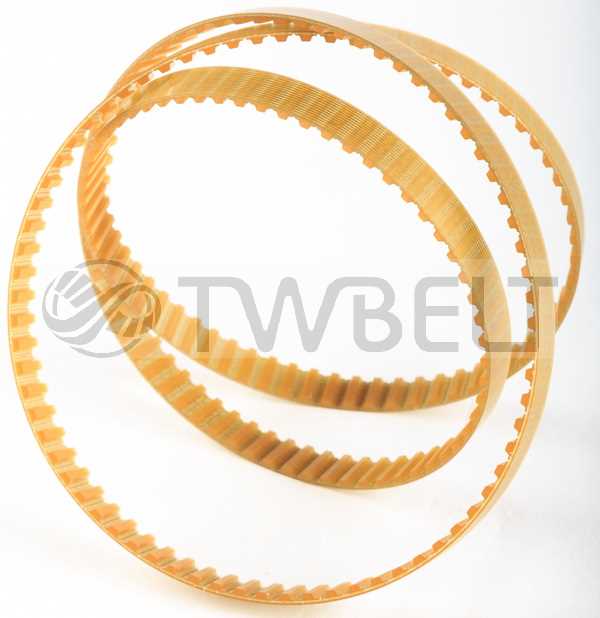

                  • T5
                    • Features
                    • ★The tooth profiles of Metric and trapezoid are similar and used for conveying instrument.

                      ★ This type tooth profiles have a slightly deeper tooth engagement than imperial tooth. The tooth meshing is more securely, yet backslash can be slightly large

                      ★Used for conveying or low voltage applications and linear motion devices.
                    • Facebook
                    • Plurk
                    • Twitter

                  • Inquiry

          • Introduction
          • Belt Specification
          • Pulley Specifications
          • Ordering example

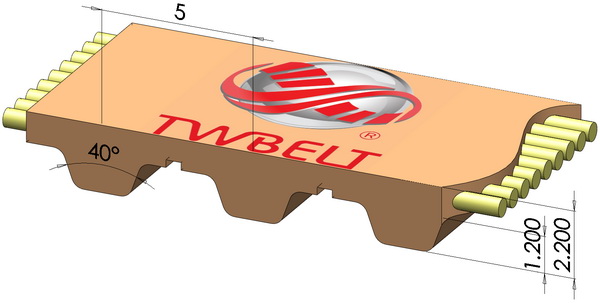

            • Structure:

               Back  Hard-wearing PU backing protects cords from exposing at belts edges. Also belts are thin enough to lower heat and increase belt life. Body Highly flexible polyurethane (PU). Because of the casting method and the capillary effect, allowing the superior bonding with tensile cords. Integrally formed profiles, providing belts with accuracy and strength. Tooth  Hard-wearing and tough PU teeth and backing are integrally formed and resistant to break. For this reason, cords are completely protected. The teeth rigidity and strength enhance shear resistance against tooth slip. Tensile cords Galvanized steel cord and aramid tensile members are available. A: steel cord  It will not stretch or fatigue during continuous operation, providing tooth shear strength and load capacity under shock applications.  Stainless steel cord is also available and particularly suitable in the erodent environment. B: aramid fiber  Since aramid tensile cord combines extraordinary strength and superior shock load capacity, it is flexible and counterbending; therefore, it is favorable for oridinary or non- magnatic driver.  Compard with steel cord, lightweight is characteristic of aramid fiber.

              ● Cleanness
                High wear resistant PU minimizes dusting and is especially suitable for clean rooms, food and beverage industry.
              ● Non-Slip
                Belts teeth mesh with pulleys, assuring the smooth transmission against tooth jump, friction and speed variation.
              ● Free of Maintenance
                Compared with chains or gears, the cost of lubrication and maintenance is few.
              ● Low Pre-tension
                Only low initial tensioning, motor and bearing loads are minimized, enjoying longer belt life.

              ●

              		 Constant Tension
                No retensioning required.
              ●

              A wide Range of Load Capacities and Speeds

              • Speeds range from 0 to over 20000 RPM.
              • Ideal for low, medium and high power range. For example, sustained transmission of high torque level at low speed, high power transmission at high speed or shock loads.
              • High degree of efficiency: allows friction-free drives with an efficiency of 99% and also lowering the operation costs.
              ● Dimensional Stability
                Excellent structure and bonding , constant belt thickness and width enable smooth running.
              ●

              Oil Resistance
                Conditionally resistant to oils, grease and fuel.
              ●

              Temperature Range
                Under room temperature, it is from -20°C to 95°C.
              ● Climate Resistance

              • Suitable for tropical climates.
              • Resistant to aging, ozone, hydrolysis and UV.
              ● Bending Resistance

              • Special and high quality component.
              • Belts are suitable for bending applications.
              ● Environmental Friendly

              • Certificated by RoHS compliance.
              • Low dusting, provided non-marking structure.
              • Free carbon black.
              ● Antistatic

              • Antistatic belt is made-to-order
              • The whole one is electronically conductive and conforms to ≤ 109 Ω
              • Resistance remains steady and will not lower following a long-run operation
              ● Acid and Alkali Resistance
                Conditionally resistant to acid and alkali
              ● Wear Resistance
                Ten times higher than rubber belts.
              ● Anti-solvent
                Conditionally anti-solvent.
              ● Hardness
                Standard hardness is 83 Shore A. 60, 73, 78, 90 and 95 Shore A are made-to-order.
              ● Minimal space and weight
                High power rate transmission allows the use of small pulley diameters and short center distances. This enables compact and light-weight drives
              ● Various specifications

              • A wide range of pitches, profiles and width are available.
              • Customized width enables the costs down.
              ● Applications

              • The property of timing belt is precision. All pitches of the whole belt are reached high accuracy. Therefore, it is ideal for high torque transmission,  linear positioning, smooth running and high rotational speeds.
              • Small pitches are ideal for smooth operation and precision positioning under light load.
              ● Large pitches are suitable for large transmission ratios, positional and angular accuracy, and synchronous conveying. For instances:

              • Automatic sliding doors
              • Material flow
              • At low temperatures, in clean rooms and in the food industry
              • Office machinery: printers, plotters, copiers
              • EDP equipment
              • Textile machinery
              • Wood processing machinery
              • Machine tools
              • Pumps
              • Compressors
              • Monery handling
              • Data storage equipment
              • Medical equipment
              • Food processors
              • DC stepper/ servo
              • Centrifuge
              • Vending machines
              • Vacuum cleaners



            • Should you wish to place an order, please contact us

              SPEC. Length Tooth TW 　 SPEC. Length Tooth TW 　 SPEC. Length Tooth TW
              T5-120 120.00 24 　 　 T5-545 545.00 109 　 　 T5-1215 1215.00 243 　
              T5-145 145.00 29 　 　 T5-550 550.00 110 　 　 T5-1275 1275.00 255 　
              T5-150 150.00 30 　 　 T5-560 560.00 112 　 　 T5-1280 1280.00 256 　
              T5-165 165.00 33 　 　 T5-575 575.00 115 　 　 T5-1315 1315.00 263 　
              T5-170 170.00 34 　 　 T5-590 590.00 118 ✔ 　 T5-1325 1325.00 265 　
              T5-180 180.00 36 　 　 T5-600 600.00 120 　 　 T5-1350 1350.00 270 　
              T5-185 185.00 37 ✔ 　 T5-605 605.00 121 　 　 T5-1355 1355.00 271 　
              T5-200 200.00 40 　 　 T5-610 610.00 122 　 　 T5-1380 1380.00 276 　
              T5-210 210.00 42 ✔ 　 T5-615 615.00 123 　 　 T5-1440 1440.00 288 　
              T5-215 215.00 43 　 　 T5-620 620.00 124 　 　 T5-1500 1500.00 300 　
              T5-220 220.00 44 ✔ 　 T5-625 625.00 125 ✔ 　 T5-1580 1580.00 316 　
              T5-225 225.00 45 　 　 T5-630 630.00 126 ✔ 　 T5-1600 1600.00 320 ✔
              T5-230 230.00 46 ✔ 　 T5-640 640.00 128 　 　 T5-1955 1955.00 391 　
              T5-240 240.00 48 ✔ 　 T5-645 645.00 129 　 　 　 　 　 　
              T5-245 245.00 49 　 　 T5-650 650.00 130 　 　 　 　 　 　
              T5-250 250.00 50 ✔ 　 T5-655 655.00 131 　 　 　 　 　 　
              T5-255 255.00 51 ✔ 　 T5-660 660.00 132 ✔ 　 　 　 　 　
              T5-260 260.00 52 ✔ 　 T5-670 670.00 134 　 　 　 　 　 　
              T5-270 270.00 54 　 　 T5-675 675.00 135 　 　 　 　 　 　
              T5-275 275.00 55 　 　 T5-690 690.00 138 　 　 　 　 　 　
              T5-280 280.00 56 ✔ 　 T5-695 695.00 139 　 　 　 　 　 　
              T5-295 295.00 59 ✔ 　 T5-700 700.00 140 　 　 　 　 　 　
              T5-300 300.00 60 ✔ 　 T5-710 710.00 142 　 　 　 　 　 　
              T5-305 305.00 61 　 　 T5-720 720.00 144 ✔ 　 　 　 　 　
              T5-320 320.00 64 ✔ 　 T5-725 725.00 145 　 　 　 　 　 　
              T5-325 325.00 65 ✔ 　 T5-740 740.00 148 　 　 　 　 　 　
              T5-330 330.00 66 ✔ 　 T5-750 750.00 150 ✔ 　 　 　 　 　
              T5-335 335.00 67 　 　 T5-755 755.00 151 　 　 　 　 　 　
              T5-340 340.00 68 　 　 T5-760 760.00 152 ✔ 　 　 　 　 　
              T5-345 345.00 69 　 　 T5-775 775.00 155 　 　 　 　 　 　
              T5-350 350.00 70 ✔ 　 T5-780 780.00 156 　 　 　 　 　 　
              T5-355 355.00 71 　 　 T5-800 800.00 160 　 　 　 　 　 　
              T5-360 360.00 72 　 　 T5-810 810.00 162 　 　 　 　 　 　
              T5-365 365.00 73 　 　 T5-815 815.00 163 　 　 　 　 　 　
              T5-375 375.00 75 ✔ 　 T5-825 825.00 165 　 　 　 　 　 　
              T5-380 380.00 76 　 　 T5-830 830.00 166 　 　 　 　 　 　
              T5-390 390.00 78 ✔ 　 T5-840 840.00 168 ✔ 　 　 　 　 　
              T5-400 400.00 80 　 　 T5-850 850.00 170 　 　 　 　 　 　
              T5-410 410.00 82 　 　 T5-860 860.00 172 　 　 　 　 　 　
              T5-420 420.00 84 ✔ 　 T5-865 865.00 173 ✔ 　 　 　 　 　
              T5-425 425.00 85 　 　 T5-875 875.00 175 　 　 　 　 　 　
              T5-430 430.00 86 ✔ 　 T5-885 885.00 177 　 　 　 　 　 　
              T5-440 440.00 88 　 　 T5-900 900.00 180 ✔ 　 　 　 　 　
              T5-445 445.00 89 　 　 T5-915 915.00 183 　 　 　 　 　 　
              T5-450 450.00 90 ✔ 　 T5-920 920.00 184 　 　 　 　 　 　
              T5-455 455.00 91 ✔ 　 T5-940 940.00 188 　 　 　 　 　 　
              T5-460 460.00 92 　 　 T5-975 975.00 195 　 　 　 　 　 　
              T5-465 465.00 93 　 　 T5-990 990.00 198 ✔ 　 　 　 　 　
              T5-475 475.00 95 ✔ 　 T5-1000 1000.00 200 　 　 　 　 　 　
              T5-480 480.00 96 　 　 T5-1075 1075.00 215 　 　 　 　 　 　
              T5-490 490.00 98 　 　 T5-1090 1090.00 218 　 　 　 　 　 　
              T5-500 500.00 100 ✔ 　 T5-1100 1100.00 220 　 　 　 　 　 　
              T5-510 510.00 102 ✔ 　 T5-1115 1115.00 223 　 　 　 　 　 　
              T5-515 515.00 103 　 　 T5-1140 1140.00 228 　 　 　 　 　 　
              T5-525 525.00 105 　 　 T5-1160 1160.00 232 　 　 　 　 　 　
              T5-530 530.00 106 ✔   T5-1200 1200.00 240 　







            • Belt pulleys are made to order. Standard specification sheets are availible in “Download” area. For further information, please contact us.

              A Type AF Type B Type BF Type
              Tooth PD OD 　 Tooth PD OD
              10 15.92 15.05 　 65 103.45 102.59
              11 17.51 16.64 　 66 105.04 104.18
              12 19.10 18.23 　 67 106.63 105.77
              13 20.69 19.83 　 68 108.23 107.36
              14 22.28 21.42 　 69 109.82 108.95
              15 23.87 23.01 　 70 111.41 110.54
              16 25.46 24.60 　 71 113.00 112.14
              17 27.06 26.19 　 72 114.59 113.73
              18 28.65 27.78 　 73 116.18 115.32
              19 30.24 29.38 　 74 117.77 116.91
              20 31.83 30.97 　 75 119.37 118.50
              21 33.42 32.56 　 76 120.96 120.09
              22 35.01 34.15 　 77 122.55 121.69
              23 36.61 35.74 　 78 124.14 123.28
              24 38.20 37.33 　 79 125.73 124.87
              25 39.79 38.92 　 80 127.32 126.46
              26 41.38 40.52 　 81 128.92 128.05
              27 42.97 42.11 　 82 130.51 129.64
              28 44.56 43.70 　 83 132.10 131.23
              29 46.15 45.29 　 84 133.69 132.83
              30 47.75 46.88 　 85 135.28 134.42
              31 49.34 48.47 　 86 136.87 136.01
              32 50.93 50.07 　 87 138.46 137.60
              33 52.52 51.66 　 88 140.06 139.19
              34 54.11 53.25 　 89 141.65 140.78
              35 55.70 54.84 　 90 143.24 142.38
              36 57.30 56.43 　 91 144.83 143.97
              37 58.89 58.02 　 92 146.42 145.56
              38 60.48 59.61 　 93 148.01 147.15
              39 62.07 61.21 　 94 149.61 148.74
              40 63.66 62.80 　 95 151.20 150.33
              41 65.25 64.39 　 96 152.79 151.92
              42 66.85 65.98 　 97 154.38 153.52
              43 68.44 67.57 　 98 155.97 155.11
              44 70.03 69.16 　 99 157.56 156.70
              45 71.62 70.76 　 100 159.15 158.29
              46 73.21 72.35 　 101 160.75 159.88
              47 74.80 73.94 　 102 162.34 161.47
              48 76.39 75.53 　 103 163.93 163.07
              49 77.99 77.12 　 104 165.52 164.66
              50 79.58 78.71 　 105 167.11 166.25
              51 81.17 80.31 　 106 168.70 167.84
              52 82.76 81.90 　 107 170.30 169.43
              53 84.35 83.49 　 108 171.89 171.02
              54 85.94 85.08 　 109 173.48 172.61
              55 87.54 86.67 　 110 175.07 174.21
              56 89.13 88.26 　 111 176.66 175.80
              57 90.72 89.85 　 112 178.25 177.39
              58 92.31 91.45 　 113 179.85 178.98
              59 93.90 93.04 　 114 181.44 180.57
              60 95.49 94.63 　 115 183.03 182.16
              61 97.08 96.22 　 　 　 　
              62 98.68 97.81 　 　 　 　
              63 100.27 99.40 　 　 　 　
              64 101.86 101.00 　 　 　 　

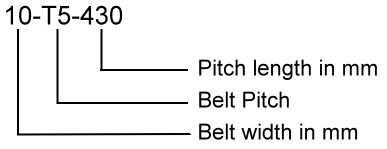

            • 10-T5-430
