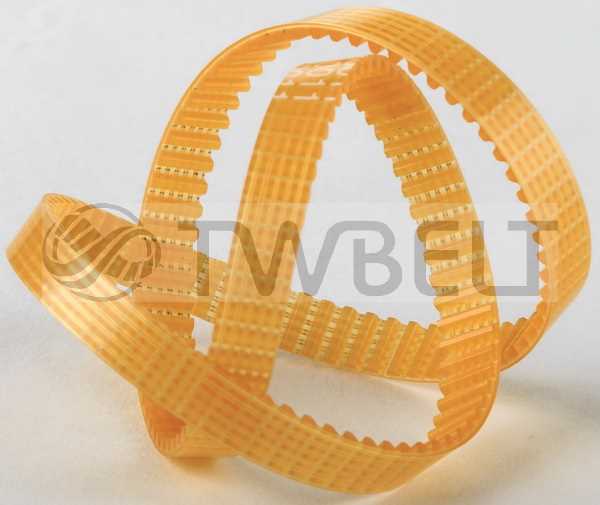

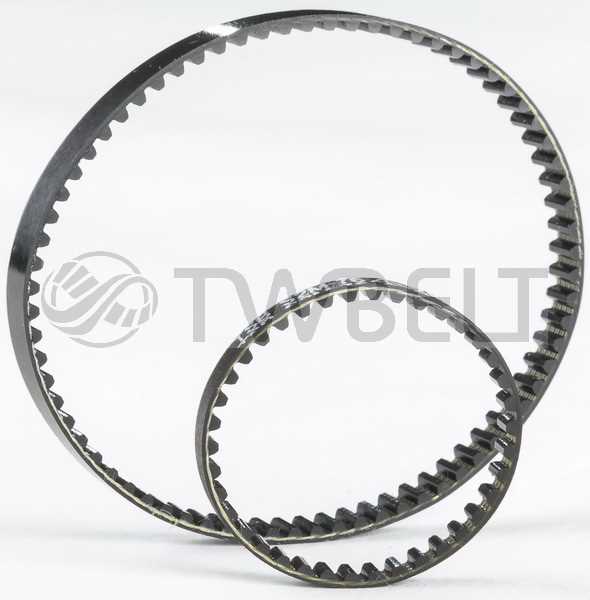

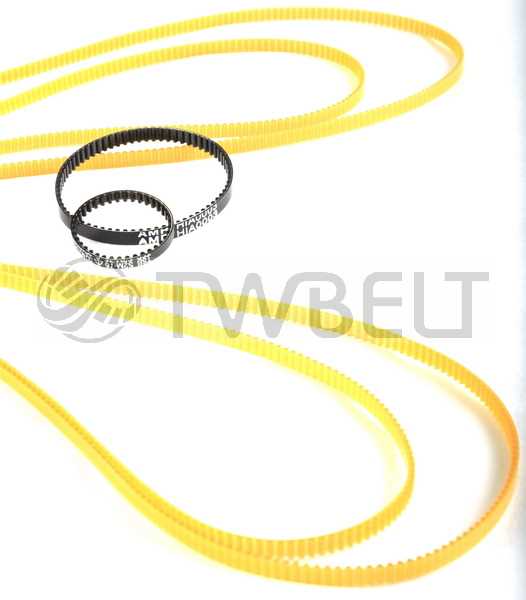

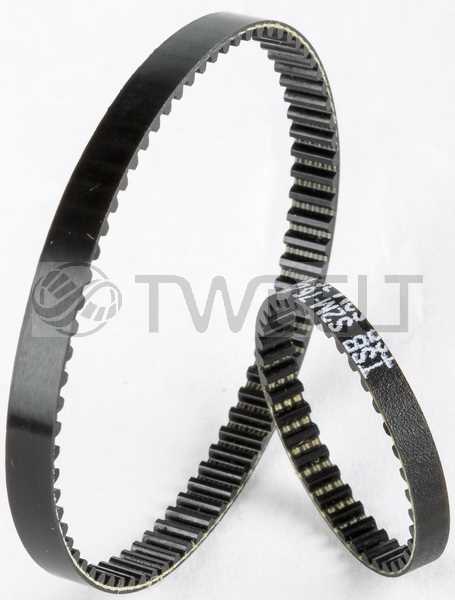

    S2M

    Features

    ★In addition to excellent for linear positioning and power transmission, this type is similar to rounded tooth profile M type providing greater load distribution, low backlash and diminished wear and noise.

    ★ Rounded tooth profile has deeper tooth meshing, and applied for precision positioning and power transmission applications.

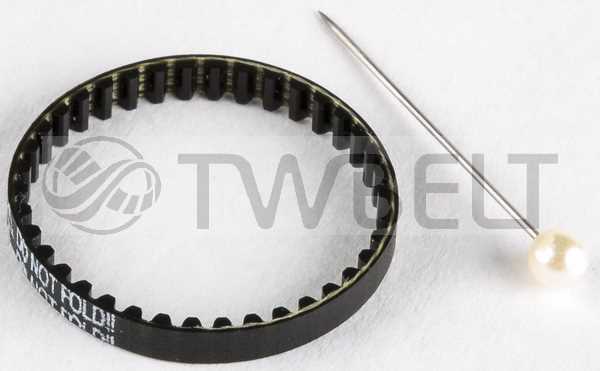

    ★Small tooth pitches are applied for high torque conveying.

    Facebook

    Plurk

    Twitter

    Inquiry

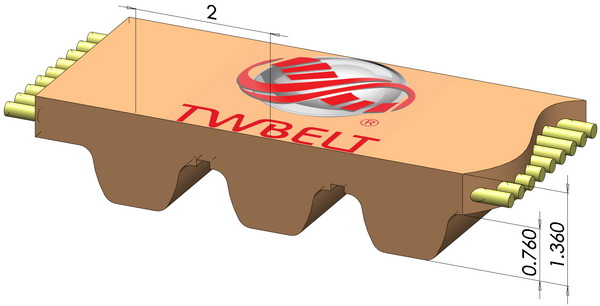

Structure:

●	Cleanness
	High wear resistant PU minimizes dusting and is especially suitable for clean rooms, food and beverage industry.
●	Non-Slip
	Belts teeth mesh with pulleys, assuring the smooth transmission against tooth jump, friction and speed variation.
●	Free of Maintenance
	Compared with chains or gears, the cost of lubrication and maintenance is few.
●	Low Pre-tension
	Only low initial tensioning, motor and bearing loads are minimized, enjoying longer belt life.
●	Constant Tension
	No retensioning required.
●	A wide Range of Load Capacities and Speeds
	Speeds range from 0 to over 20000 RPM. Ideal for low, medium and high power range. For example, sustained transmission of high torque level at low speed, high power transmission at high speed or shock loads. High degree of efficiency: allows friction-free drives with an efficiency of 99% and also lowering the operation costs.
●	Dimensional Stability
	Excellent structure and bonding , constant belt thickness and width enable smooth running.
●	Oil Resistance
	Conditionally resistant to oils, grease and fuel.
●	Temperature Range
	Under room temperature, it is from -20°C to 95°C.
●	Climate Resistance
	Suitable for tropical climates. Resistant to aging, ozone, hydrolysis and UV.
●	Bending Resistance
	Special and high quality component. Belts are suitable for bending applications.
●	Environmental Friendly
	Certificated by RoHS compliance. Low dusting, provided non-marking structure. Free carbon black.
●	Antistatic
	Antistatic belt is made-to-order The whole one is electronically conductive and conforms to ≤ 10⁹ Ω Resistance remains steady and will not lower following a long-run operation
●	Acid and Alkali Resistance
	Conditionally resistant to acid and alkali
●	Wear Resistance
	Ten times higher than rubber belts.
●	Anti-solvent
	Conditionally anti-solvent.
●	Hardness
	Standard hardness is 83 Shore A. 60, 73, 78, 90 and 95 Shore A are made-to-order.
●	Minimal space and weight
	High power rate transmission allows the use of small pulley diameters and short center distances. This enables compact and light-weight drives
●	Various specifications
	A wide range of pitches, profiles and width are available. Customized width enables the costs down.
●	Applications
	The property of timing belt is precision. All pitches of the whole belt are reached high accuracy. Therefore, it is ideal for high torque transmission, linear positioning, smooth running and high rotational speeds. Small pitches are ideal for smooth operation and precision positioning under light load.
●	Large pitches are suitable for large transmission ratios, positional and angular accuracy, and synchronous conveying. For instances:
	Automatic sliding doors Material flow At low temperatures, in clean rooms and in the food industry Office machinery: printers, plotters, copiers EDP equipment Textile machinery Wood processing machinery Machine tools Pumps Compressors Monery handling Data storage equipment Medical equipment Food processors DC stepper/ servo Centrifuge Vending machines Vacuum cleaners

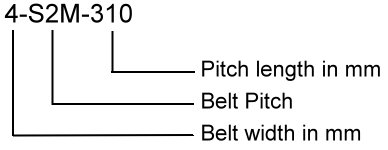

Should you wish to place an order, please contact us!

Sepc.	Length	Tooth	PU	Sepc.	Length	Tooth	PU	Sepc.	Length	Tooth	PU	Sepc.	Length	Tooth	PU
S2M-56	56.00	28		S2M-190	190.00	95		S2M-322	322.00	161		S2M-604	604.00	302
S2M-58	58.00	29		S2M-192	192.00	96	✔	S2M-324	324.00	162	✔	S2M-630	630.00	315
S2M-60	60.00	30		S2M-194	194.00	97		S2M-326	326.00	163		S2M-638	638.00	319
S2M-66	66.00	33		S2M-196	196.00	96		S2M-328	328.00	164		S2M-648	648.00	324
S2M-76	76.00	38	✔	S2M-198	198.00	98		S2M-330	330.00	165		S2M-652	652.00	326
S2M-78	78.00	39		S2M-200	200.00	100	✔	S2M-334	334.00	167	✔	S2M-656	656.00	328
S2M-80	80.00	40	✔	S2M-202	202.00	101		S2M-338	338.00	169		S2M-660	660.00	330
S2M-84	84.00	42		S2M-204	204.00	102	✔	S2M-340	340.00	170	✔	S2M-694	694.00	347
S2M-86	86.00	43	✔	S2M-206	206.00	103		S2M-342	342.00	171		S2M-710	710.00	355
S2M-88	88.00	44		S2M-208	208.00	104		S2M-344	344.00	172		S2M-740	740.00	370
S2M-90	90.00	45		S2M-210	210.00	105	✔	S2M-350	350.00	175		S2M-752	752.00	376
S2M-92	92.00	46		S2M-212	212.00	106	✔	S2M-354	354.00	177		S2M-754	754.00	377	✔
S2M-98	98.00	49		S2M-214	214.00	107		S2M-356	356.00	178		S2M-766	766.00	383	✔
S2M-100	100.00	50		S2M-216	216.00	108		S2M-360	360.00	180	✔	S2M-790	790.00	395
S2M-102	102.00	51		S2M-218	218.00	109	✔	S2M-364	364.00	182		S2M-796	796.00	398
S2M-104	104.00	52		S2M-220	220.00	110	✔	S2M-370	370.00	185	✔	S2M-800	800.00	400	✔
S2M-110	110.00	55		S2M-224	224.00	112		S2M-376	376.00	188		S2M-806	806.00	403
S2M-112	112.00	56		S2M-226	226.00	113	✔	S2M-380	380.00	190	✔	S2M-810	810.00	405
S2M-114	114.00	57		S2M-230	230.00	115	✔	S2M-382	382.00	191	✔	S2M-826	826.00	413
S2M-116	116.00	58		S2M-232	232.00	116		S2M-386	386.00	193		S2M-848	848.00	424
S2M-118	118.00	59		S2M-234	234.00	117		S2M-390	390.00	195		S2M-856	856.00	428
S2M-120	120.00	60		S2M-236	236.00	118		S2M-392	392.00	196		S2M-860	860.00	430
S2M-122	122.00	61		S2M-240	240.00	120	✔	S2M-396	396.00	198		S2M-862	862.00	431
S2M-124	124.00	62	✔	S2M-242	242.00	121		S2M-400	400.00	200	✔	S2M-866	866.00	433
S2M-126	126.00	63		S2M-244	244.00	122	✔	S2M-408	408.00	204		S2M-876	876.00	438
S2M-128	128.00	64	✔	S2M-246	246.00	123	✔	S2M-410	410.00	205		S2M-880	880.00	440
S2M-130	130.00	65	✔	S2M-248	248.00	124		S2M-426	426.00	213		S2M-892	892.00	446
S2M-132	132.00	66		S2M-250	250.00	125	✔	S2M-434	426.00	217		S2M-900	900.00	450
S2M-134	134.00	67		S2M-252	252.00	126	✔	S2M-436	436.00	218		S2M-940	940.00	470
S2M-138	138.00	69		S2M-254	254.00	127		S2M-438	438.00	219		S2M-950	950.00	475
S2M-140	140.00	70	✔	S2M-256	256.00	128		S2M-440	440.00	220		S2M-976	976.00	488
S2M-142	142.00	71		S2M-258	258.00	129		S2M-444	444.00	222		S2M-984	984.00	492
S2M-144	144.00	72	✔	S2M-260	260.00	130		S2M-448	448.00	224		S2M-1000	1000.00	500
S2M-146	146.00	73		S2M-262	262.00	131		S2M-452	452.00	226		S2M-1016	1016.00	508
S2M-148	148.00	74		S2M-264	264.00	132	✔	S2M-454	454.00	227		S2M-1062	1062.00	531
S2M-150	150.00	75	✔	S2M-266	266.00	133	✔	S2M-460	460.00	230		S2M-1066	1066.00	533
S2M-152	152.00	76		S2M-272	272.00	136		S2M-474	474.00	237		S2M-1110	1110.00	555
S2M-154	154.00	77		S2M-274	274.00	137		S2M-480	480.00	240		S2M-1136	1136.00	568
S2M-156	156.00	78		S2M-276	276.00	138		S2M-486	486.00	243		S2M-1140	1140.00	570
S2M-158	158.00	79		S2M-278	278.00	139		S2M-488	488.00	244		S2M-1196	1196.00	598
S2M-160	160.00	80		S2M-280	280.00	140	✔	S2M-492	492.00	246		S2M-1224	1224.00	612
S2M-162	162.00	81		S2M-284	284.00	142		S2M-494	494.00	247		S2M-1228	1228.00	614
S2M-164	164.00	82	✔	S2M-286	286.00	143		S2M-500	500.00	250		S2M-1250	1250.00	625
S2M-166	166.00	83		S2M-288	288.00	144		S2M-504	504.00	252		S2M-1274	1274.00	637
S2M-168	168.00	84		S2M-290	290.00	145		S2M-520	520.00	260		S2M-1290	1290.00	645
S2M-170	170.00	85		S2M-292	292.00	146		S2M-530	530.00	265		S2M-1420	1420.00	710
S2M-172	172.00	86	✔	S2M-296	296.00	148		S2M-540	540.00	270		S2M-1596	1596.00	798
S2M-174	174.00	87	✔	S2M-300	300.00	150	✔	S2M-550	550.00	275		S2M-1690	1690.00	845	✔
S2M-176	176.00	88	✔	S2M-302	302.00	151		S2M-560	560.00	280		S2M-2250	2250.00	1125
S2M-178	178.00	89		S2M-308	308.00	154		S2M-572	572.00	286		S2M-3000	3000.00	1500
S2M-180	180.00	90	✔	S2M-310	310.00	155	✔	S2M-580	580.00	290		S2M-3672	3672.00	1836
S2M-182	182.00	91		S2M-314	314.00	157	✔	S2M-586	586.00	293		S2M-3828	3828.00	1914
S2M-184	184.00	92	✔	S2M-316	316.00	158		S2M-594	594.00	297
S2M-186	186.00	93		S2M-318	318.00	159		S2M-596	594.00	298
S2M-188	188.00	94		S2M-320	320.00	160	✔	S2M-600	600.00	300

Belt pulleys are made to order. Standard specification sheets are availible in “Download” area. For further information, please contact us.
