Smooth transmission |
|
|

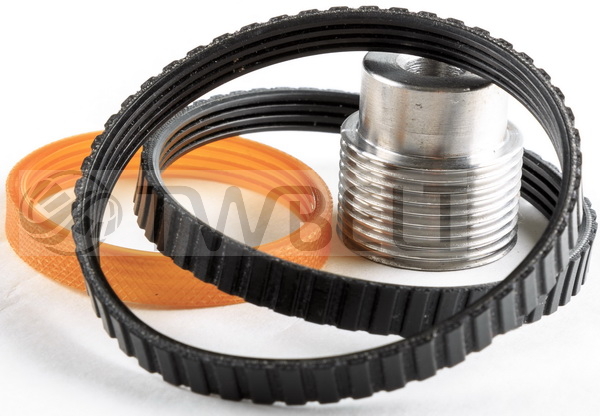

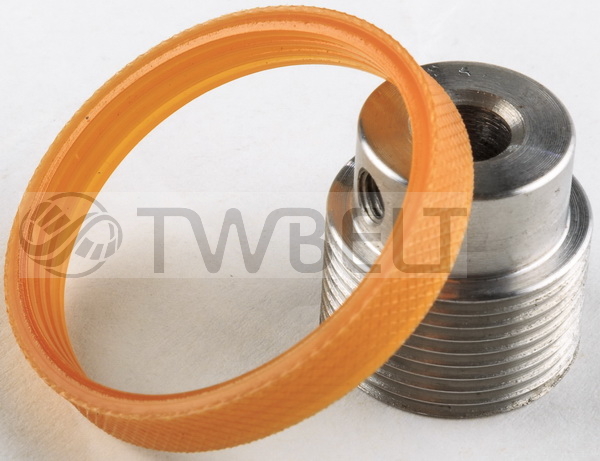

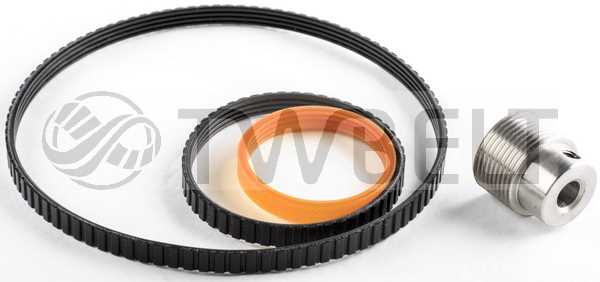

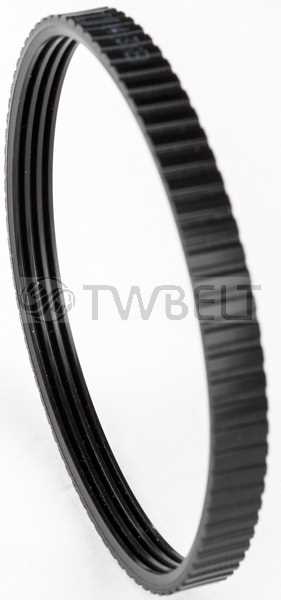

Giga-V belt is integrally formed polyurethane (PU). Based on excellent bonding and structure, tension is constant. Belts are hard to be vibrated even at high speed. |
|
● |
Vibrations absorption |
|
|
Highly flexible structure resists shock loads and absorbed vibrations. |
|
● |
Wear resistance |
|
|
Ten times higher than rubber belts |
|
|
Low debris following a long-term operation, and less sensitive to debris (Please refer to the figure below.) and also prevent belt from cracking once debris in the sheave groove. |
|
● |
Easy to install |
|
|
Elastic cords are available. Installed simply and quickly under fixed center distances without any tools. Pulleys do not need to be removed. |
|
● |
Free of maintenance |
|
|
Compared with chains or gears, the cost of lubrication and maintenance is few. |
|
● |
Constant tension |
|
|
Ribs are resistance to wear and it is hard to find debris in the sheave groove. Therefore, tension is uniform. No retention required. |
|
● |
High efficient |
|
|
Combining the advantages of flat belts and V ones. Its transmission capability is 30-50% higher than V belts on the same drives, providing efficiency enhancement. |
|
● |
High speed capability |
|
|
Since transmission centrifugal force causes less transmission loss, Giga-V belts are ideal for high-speed operation, exceeding a speed of 60m/s. |
|
● |
Excellent power performance |
|
|
Speed ratio reaches 40:1 |
|
● |
Cleanness |
|
|
High wear resistant PU minimizes dusting and is especially suitable for clean rooms, food and beverage industry. |
|
● |
Oil resistance |
|
|
Conditionally resistant to grease, oils and fuel. |
|
● |
Temperature range |
|
|
Under room temperature, it is from -20°C to 95°C.。 |
|
● |
Quiet |
|
|
Smooth running and decreased level of noise |
|
● |
Climate resistance |
|
|
Suitable for tropical climates |
|
|
Resistant to aging, ozone, hydrolysis and UV |
|
|
Hydrolysis resistance |
|
● |
Counterbending |
|
|
Special and high quality component and belts are suitable for bending applications. |
|
● |
Environmental friendly |
|
|
Certificated by REACH Regulation, low dusting, provided non-marking structure and Free of carbon black |
|
● |
Antistatic |
|
|
Antistatic belt is made-to-order. The whole one is electronically conductive and conforms to ≤ 109 Ω. Resistance remains steady and will not lower following a long-run operation. |
|
● |
Acid and alkali resistance |
|
|
Conditionally resistant to acid and lye. |
|
● |
Anti-solvent |
|
|
Conditionally anti-solvent |
|
● |
Hardness |
|
|
Standard hardness is 75 Shore A |
|
● |
Minimal space and weight |
|
|
High power rate transmission allows the use of small pulley diameters and short center distances. This enables compact and light-weight drives |
|
● |
Various specifications |
|
|
A wide range of specs. Specific width is available. Customized grooves |
|
● |
Applications： |
|
|
Logistics and transportation |
|
|
Fitness equipment. (e. g., treadmill, indoor cycling bike and cross trainer/stepper.) |
|
|
Massage chair |
|
|
NC lathe |
|
|
Cooling tower |
|
|
Single action pump |
|
|
Polisher |
|
|
Kneading machine |
|
|
Vegetable crusher |
|
|
Washing/ Dryer machine |
|
|
Printing machine |
|
|
Machine tool |
|
|
Vacuum cleaner |
|
|
Optical lens grinder |
|
|
Medical device (e.g., dental toothbrush.) |
|
|
Lab devices. (e.g., shaker.) |
|
|
Robotic swimming pool cleaner |
|
|
Concrete mixer |
|
|
Hand tool (e.g., wood sander.) |
|
|
Small household appliance (e.g., food processor.) |
|
|
Conveyer roller |
|
|
Paper transporter |
|
|
Automatic door |
|
|
Bakery equipment. (e.g., molding machine.) |
|
|
Small capacity centrifuge |
|
|
Small compressor |
|
|
Small woodworking machinery |
|
|
Mini cultivator |
|
|
Electric car |
