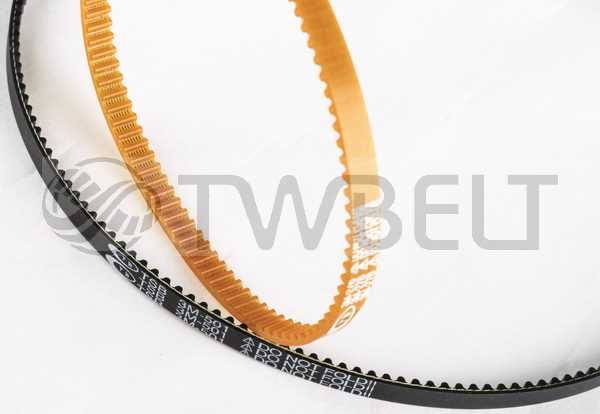

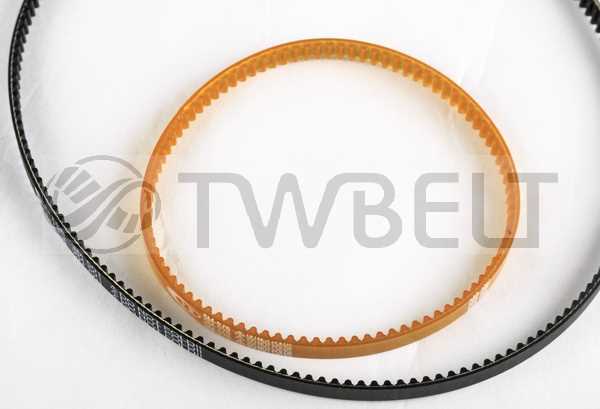

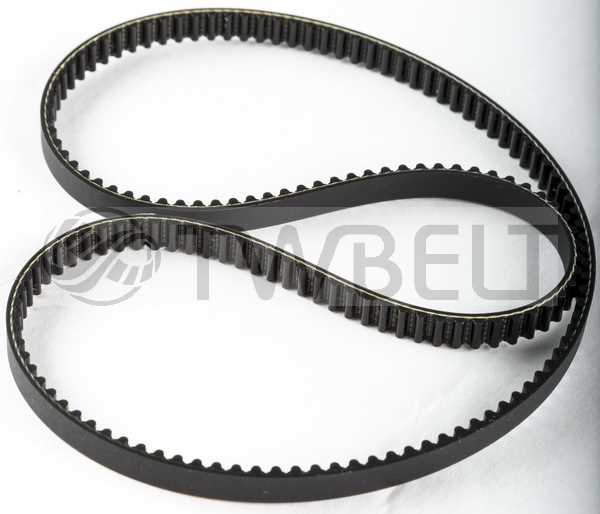

                  • 3M
                    • Features
                    • ★Rounded teeth supply low backlash and wear, as well as good load distribution to ensure high performance, torque force and precision tooth meshing. The traits provide excellence in rotary and linear positioning, and power transmission applications.

                      ★ Deep tooth engagement causes slightly noise, but it provides greater transmission power.

                      ★Small tooth pitches are applied for high torque conveying.
                    • Facebook
                    • Plurk
                    • Twitter

                  • Inquiry

          • Introduction
          • Belt Specification
          • Pulley Specifications
          • Ordering example

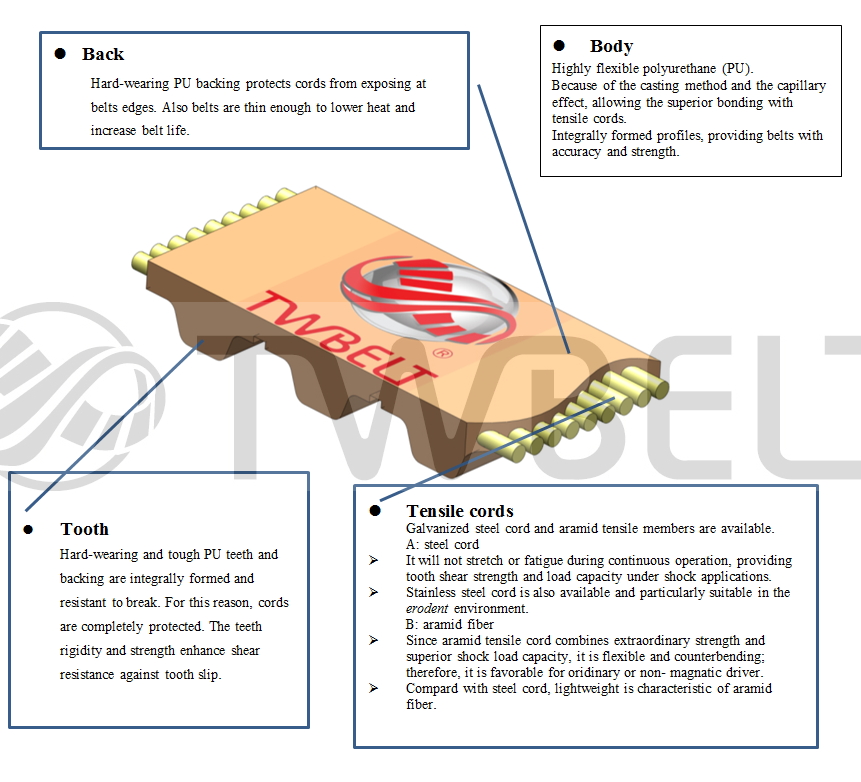

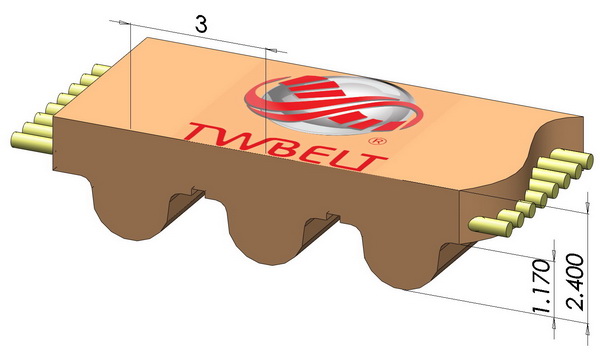

            • Structure:

               Back  Hard-wearing PU backing protects cords from exposing at belts edges. Also belts are thin enough to lower heat and increase belt life. Body Highly flexible polyurethane (PU). Because of the casting method and the capillary effect, allowing the superior bonding with tensile cords. Integrally formed profiles, providing belts with accuracy and strength. Tooth  Hard-wearing and tough PU teeth and backing are integrally formed and resistant to break. For this reason, cords are completely protected. The teeth rigidity and strength enhance shear resistance against tooth slip. Tensile cords Galvanized steel cord and aramid tensile members are available. A: steel cord  It will not stretch or fatigue during continuous operation, providing tooth shear strength and load capacity under shock applications.  Stainless steel cord is also available and particularly suitable in the erodent environment. B: aramid fiber  Since aramid tensile cord combines extraordinary strength and superior shock load capacity, it is flexible and counterbending; therefore, it is favorable for oridinary or non- magnatic driver.  Compard with steel cord, lightweight is characteristic of aramid fiber.

              ● Cleanness
                High wear resistant PU minimizes dusting and is especially suitable for clean rooms, food and beverage industry.
              ● Non-Slip
                Belts teeth mesh with pulleys, assuring the smooth transmission against tooth jump, friction and speed variation.
              ● Free of Maintenance
                Compared with chains or gears, the cost of lubrication and maintenance is few.
              ● Low Pre-tension
                Only low initial tensioning, motor and bearing loads are minimized, enjoying longer belt life.

              ●

              		 Constant Tension
                No retensioning required.
              ●

              A wide Range of Load Capacities and Speeds

              • Speeds range from 0 to over 20000 RPM.
              • Ideal for low, medium and high power range. For example, sustained transmission of high torque level at low speed, high power transmission at high speed or shock loads.
              • High degree of efficiency: allows friction-free drives with an efficiency of 99% and also lowering the operation costs.
              ● Dimensional Stability
                Excellent structure and bonding , constant belt thickness and width enable smooth running.
              ●

              Oil Resistance
                Conditionally resistant to oils, grease and fuel.
              ●

              Temperature Range
                Under room temperature, it is from -20°C to 95°C.
              ● Climate Resistance

              • Suitable for tropical climates.
              • Resistant to aging, ozone, hydrolysis and UV.
              ● Bending Resistance

              • Special and high quality component.
              • Belts are suitable for bending applications.
              ● Environmental Friendly

              • Certificated by RoHS compliance.
              • Low dusting, provided non-marking structure.
              • Free carbon black.
              ● Antistatic

              • Antistatic belt is made-to-order
              • The whole one is electronically conductive and conforms to ≤ 109 Ω
              • Resistance remains steady and will not lower following a long-run operation
              ● Acid and Alkali Resistance
                Conditionally resistant to acid and alkali
              ● Wear Resistance
                Ten times higher than rubber belts.
              ● Anti-solvent
                Conditionally anti-solvent.
              ● Hardness
                Standard hardness is 83 Shore A. 60, 73, 78, 90 and 95 Shore A are made-to-order.
              ● Minimal space and weight
                High power rate transmission allows the use of small pulley diameters and short center distances. This enables compact and light-weight drives
              ● Various specifications

              • A wide range of pitches, profiles and width are available.
              • Customized width enables the costs down.
              ● Applications

              • The property of timing belt is precision. All pitches of the whole belt are reached high accuracy. Therefore, it is ideal for high torque transmission,  linear positioning, smooth running and high rotational speeds.
              • Small pitches are ideal for smooth operation and precision positioning under light load.
              ● Large pitches are suitable for large transmission ratios, positional and angular accuracy, and synchronous conveying. For instances:

              • Automatic sliding doors
              • Material flow
              • At low temperatures, in clean rooms and in the food industry
              • Office machinery: printers, plotters, copiers
              • EDP equipment
              • Textile machinery
              • Wood processing machinery
              • Machine tools
              • Pumps
              • Compressors
              • Monery handling
              • Data storage equipment
              • Medical equipment
              • Food processors
              • DC stepper/ servo
              • Centrifuge
              • Vending machines
              • Vacuum cleaners



            • Should you wish to place an order, please contact us!

              SPEC. Length Tooth PU 　 SPEC. Length Tooth PU 　 SPEC. Length Tooth PU 　 SPEC. Length Tooth PU
              3M-87 87.00 29 　 　 3M-291 291.00 97 　 　 3M-495 495.00 165 　 　 3M-735 735.00 245 　
              3M-105 105.00 35 　 　 3M-294 294.00 98 　 　 3M-501 501.00 167 ✔ 　 3M-738 738.00 246 　
              3M-108 108.00 36 　 　 3M-297 297.00 99 ✔ 　 3M-504 504.00 168 　 　 3M-750 750.00 250 　
              3M-111 111.00 37 　 　 3M-300 300.00 100 ✔ 　 3M-507 507.00 169 ✔ 　 3M-753 753.00 251 　
              3M-117 117.00 39 　 　 3M-303 303.00 101 　 　 3M-510 510.00 170 　 　 3M-756 756.00 252 　
              3M-120 120.00 40 　 　 3M-306 306.00 102 　 　 3M-513 513.00 171 　 　 3M-768 768.00 256 　
              3M-123 123.00 41 　 　 3M-309 309.00 103 ✔ 　 3M-516 516.00 172 　 　 3M-780 780.00 260 　
              3M-126 126.00 42 　 　 3M-312 312.00 104 ✔ 　 3M-519 519.00 173 　 　 3M-783 783.00 261 　
              3M-129 129.00 43 　 　 3M-315 315.00 105 　 　 3M-522 522.00 174 　 　 3M-789 789.00 263 　
              3M-132 132.00 44 　 　 3M-318 318.00 106 　 　 3M-525 525.00 175 　 　 3M-801 801.00 267 　
              3M-135 135.00 45 　 　 3M-321 321.00 107 　 　 3M-531 531.00 177 　 　 3M-804 804.00 268 　
              3M-141 141.00 47 　 　 3M-324 324.00 108 　 　 3M-537 537.00 179 　 　 3M-810 810.00 270 　
              3M-144 144.00 48 　 　 3M-327 327.00 109 　 　 3M-540 540.00 180 　 　 3M-813 813.00 271 　
              3M-147 147.00 49 　 　 3M-330 330.00 110 ✔ 　 3M-543 543.00 181 　 　 3M-822 822.00 274 　
              3M-150 150.00 50 　 　 3M-333 333.00 111 ✔ 　 3M-546 546.00 182 　 　 3M-825 825.00 275 　
              3M-153 153.00 51 　 　 3M-336 336.00 112 　 　 3M-549 549.00 183 　 　 3M-843 843.00 281 　
              3M-156 156.00 52 　 　 3M-339 339.00 113 　 　 3M-552 552.00 184 　 　 3M-849 849.00 283 　
              3M-159 159.00 53 　 　 3M-342 342.00 114 　 　 3M-555 555.00 185 　 　 3M-858 858.00 286 　
              3M-162 162.00 54 　 　 3M-345 345.00 115 　 　 3M-558 558.00 186 　 　 3M-861 861.00 287 　
              3M-165 165.00 55 　 　 3M-348 348.00 116 　 　 3M-561 561.00 187 　 　 3M-873 873.00 291 　
              3M-168 168.00 56 　 　 3M-351 351.00 117 　 　 3M-564 564.00 188 ✔ 　 3M-882 882.00 294 　
              3M-171 171.00 57 　 　 3M-354 354.00 118 ✔ 　 3M-567 567.00 189 　 　 3M-900 900.00 300 ✔
              3M-174 174.00 58 ✔ 　 3M-357 357.00 119 　 　 3M-570 570.00 190 　 　 3M-936 936.00 312 　
              3M-177 177.00 59 ✔ 　 3M-360 360.00 120 　 　 3M-573 573.00 191 　 　 3M-939 939.00 313 　
              3M-180 180.00 60 　 　 3M-363 363.00 121 ✔ 　 3M-576 576.00 192 　 　 3M-945 945.00 315 　
              3M-183 183.00 61 　 　 3M-366 366.00 122 　 　 3M-579 579.00 193 　 　 3M-960 960.00 320 　
              3M-186 186.00 62 　 　 3M-369 369.00 123 　 　 3M-582 582.00 194 　 　 3M-975 975.00 325 　
              3M-189 189.00 63 ✔ 　 3M-372 372.00 124 ✔ 　 3M-588 588.00 196 　 　 3M-981 981.00 327 　
              3M-192 192.00 64 　 　 3M-375 375.00 125 　 　 3M-591 591.00 197 ✔ 　 3M-1002 1002.00 334 　
              3M-195 195.00 65 　 　 3M-378 378.00 126 　 　 3M-594 594.00 198 　 　 3M-1026 1026.00 342 　
              3M-198 198.00 66 　 　 3M-381 381.00 127 　 　 3M-597 597.00 199 　 　 3M-1038 1038.00 346 　
              3M-201 201.00 67 　 　 3M-384 384.00 128 　 　 3M-600 600.00 200 　 　 3M-1050 1050.00 350 　
              3M-204 204.00 68 　 　 3M-390 390.00 130 ✔ 　 3M-603 603.00 201 　 　 3M-1068 1068.00 356 　
              3M-207 207.00 69 　 　 3M-393 393.00 131 　 　 3M-606 606.00 202 　 　 3M-1071 1071.00 357 　
              3M-210 210.00 70 ✔ 　 3M-396 396.00 132 　 　 3M-609 609.00 203 　 　 3M-1080 1080.00 360 　
              3M-213 213.00 71 　 　 3M-399 399.00 133 　 　 3M-612 612.00 204 　 　 3M-1086 1086.00 362 　
              3M-216 216.00 72 　 　 3M-402 402.00 134 　 　 3M-624 624.00 208 　 　 3M-1110 1110.00 370 　
              3M-219 219.00 73 ✔ 　 3M-405 405.00 135 　 　 3M-627 627.00 209 ✔ 　 3M-1170 1170.00 390 ✔
              3M-222 222.00 74 　 　 3M-408 408.00 136 　 　 3M-630 630.00 210 ✔ 　 3M-1188 1188.00 396 　
              3M-225 225.00 75 　 　 3M-411 411.00 137 　 　 3M-633 633.00 211 　 　 3M-1125 1125.00 375 　
              3M-228 228.00 76 　 　 3M-417 417.00 139 　 　 3M-645 645.00 215 　 　 3M-1227 1227.00 409 　
              3M-234 234.00 78 　 　 3M-420 420.00 140 　 　 3M-648 648.00 216 　 　 3M-1245 1245.00 415 　
              3M-237 237.00 79 ✔ 　 3M-423 423.00 141 　 　 3M-651 651.00 217 ✔ 　 3M-1260 1260.00 420 ✔
              3M-240 240.00 80 ✔ 　 3M-426 426.00 142 　 　 3M-654 654.00 218 　 　 3M-1263 1263.00 421 　
              3M-243 243.00 81 　 　 3M-432 432.00 144 　 　 3M-660 660.00 220 　 　 3M-1299 1299.00 433 　
              3M-246 246.00 82 　 　 3M-435 435.00 145 　 　 3M-666 666.00 222 　 　 3M-1344 1344.00 448 　
              3M-249 249.00 83 ✔ 　 3M-438 438.00 146 　 　 3M-669 669.00 223 　 　 3M-1500 1500.00 500 　
              3M-252 252.00 84 　 　 3M-441 441.00 147 　 　 3M-672 672.00 224 　 　 3M-1569 1569.00 523 　
              3M-255 255.00 85 ✔ 　 3M-444 444.00 148 　 　 3M-675 675.00 225 　 　 3M-1680 1680.00 560 ✔
              3M-258 258.00 86 ✔ 　 3M-447 447.00 149 ✔ 　 3M-681 681.00 227 ✔ 　 3M-1800 1800.00 600 　
              3M-261 261.00 87 　 　 3M-450 450.00 150 　 　 3M-687 687.00 229 　 　 3M-1863 1863.00 621 　
              3M-264 264.00 88 ✔ 　 3M-453 453.00 151 　 　 3M-690 690.00 230 　 　 3M-1926 1926.00 642 　
              3M-267 267.00 89 　 　 3M-459 459.00 153 　 　 3M-693 693.00 231 　 　 3M-2388 2388.00 796 　
              3M-270 270.00 90 ✔ 　 3M-468 468.00 156 　 　 3M-699 699.00 233 　 　 3M-2640 2640.00 880 　
              3M-273 273.00 91 　 　 3M-471 471.00 157 　 　 3M-702 702.00 234 　 　 3M-3000 3000.00 1000 　
              3M-276 276.00 92 ✔ 　 3M-474 474.00 158 　 　 3M-705 705.00 235 　 　 　 　 　 　
              3M-279 279.00 93 　 　 3M-477 477.00 159 ✔ 　 3M-708 708.00 236 　 　 　 　 　 　
              3M-282 282.00 94 ✔ 　 3M-480 480.00 160 　 　 3M-711 711.00 237 　 　 　 　 　 　
              3M-285 285.00 95 　 　 3M-483 483.00 161 　 　 3M-720 720.00 240 　 　 　 　 　 　
              3M-288 288.00 96 　 　 3M-486 486.00 162 ✔ 　 3M-723 723.00 241 　 　 　 　 　 　
                                  3M-732 732.00 244 ✔





            • Belt pulleys are made to order. Standard specification sheets are availible in “Download” area. For further information, please contact us.

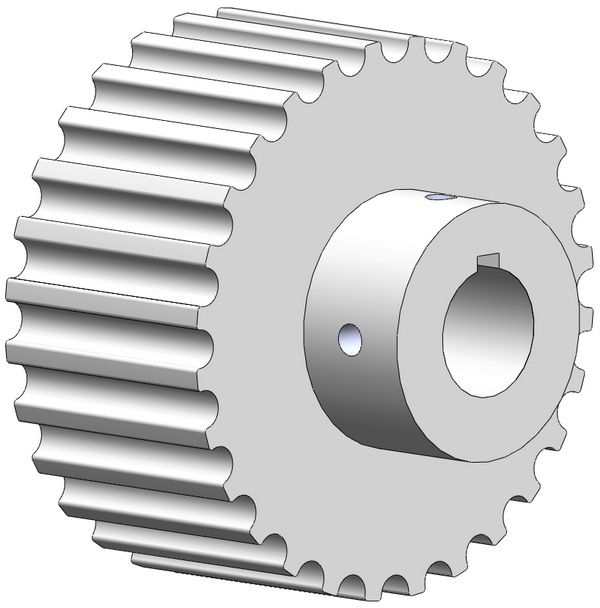

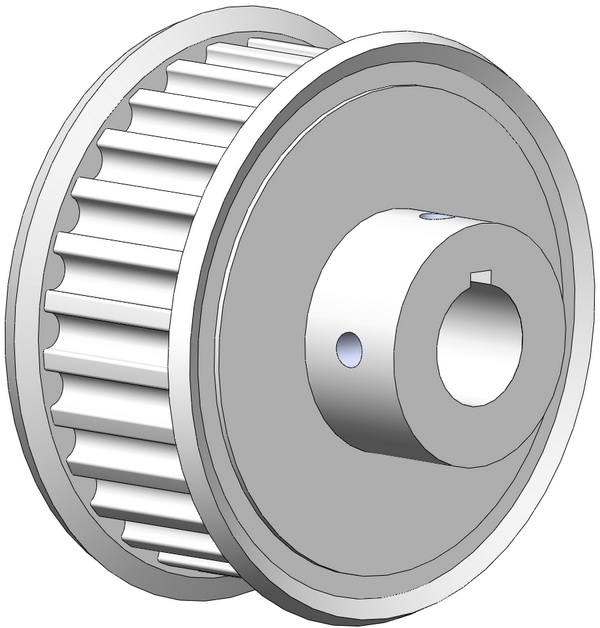

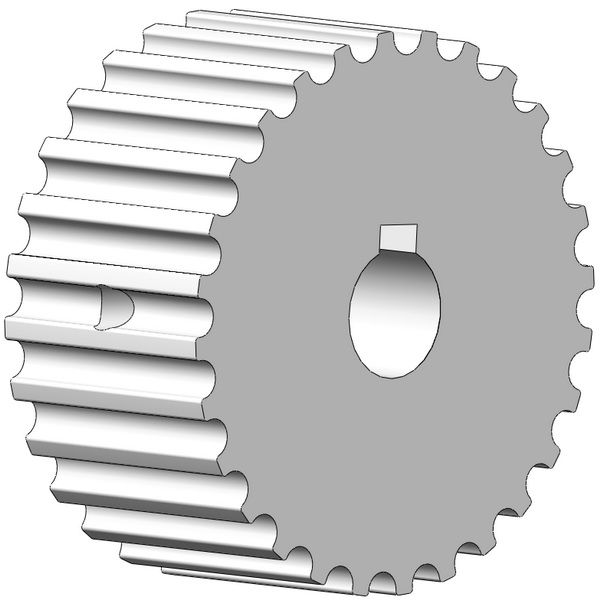

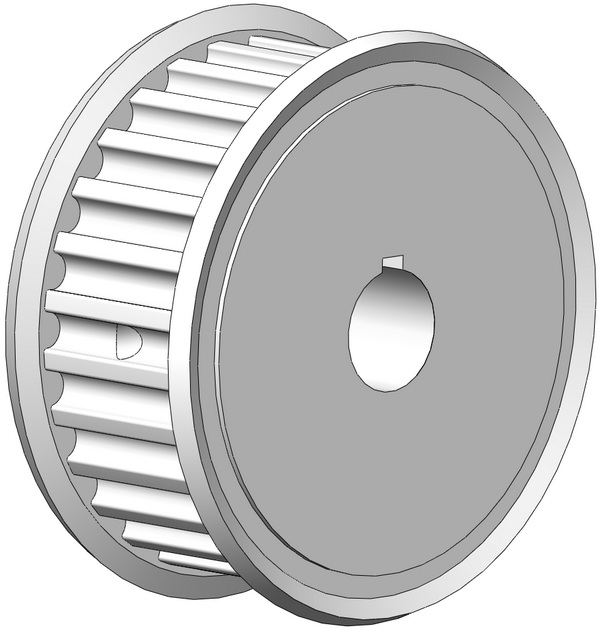

              A Type AF Type B Type BF
              Tooth PD OD 　 Tooth PD OD 　 Tooth PD OD
              10 9.55 8.79 　 61 58.25 57.49 　 112 106.95 106.19
              11 10.50 9.74 　 62 59.21 58.44 　 113 107.91 107.15
              12 11.46 10.70 　 63 60.16 59.40 　 114 108.86 108.10
              13 12.41 11.65 　 64 61.12 60.35 　 115 109.82 109.05
              14 13.37 12.61 　 65 62.07 61.31 　 116 110.77 110.01
              15 14.32 13.56 　 66 63.03 62.26 　 117 111.73 110.96
              16 15.28 14.52 　 67 63.98 63.22 　 118 112.68 111.92
              17 16.23 15.47 　 68 64.94 64.17 　 119 113.64 112.87
              18 17.19 16.43 　 69 65.89 65.13 　 120 114.59 113.83
              19 18.14 17.38 　 70 66.85 66.08 　 121 115.55 114.78
              20 19.10 18.34 　 71 67.80 67.04 　 122 116.50 115.74
              21 20.05 19.29 　 72 68.75 67.99 　 123 117.46 116.69
              22 21.01 20.25 　 73 69.71 68.95 　 124 118.41 117.65
              23 21.96 21.20 　 74 70.66 69.90 　 125 119.37 118.60
              24 22.92 22.16 　 75 71.62 70.86 　 126 120.32 119.56
              25 23.87 23.11 　 76 72.57 71.81 　 127 121.28 120.51
              26 24.83 24.07 　 77 73.53 72.77 　 128 122.23 121.47
              27 25.78 25.02 　 78 74.48 73.72 　 129 123.19 122.42
              28 26.74 25.98 　 79 75.44 74.68 　 130 124.14 123.38
              29 27.69 26.93 　 80 76.39 75.63 　 131 125.10 124.33
              30 28.65 27.89 　 81 77.35 76.59 　 132 126.05 125.29
              31 29.60 28.84 　 82 78.30 77.54 　 133 127.01 126.24
              32 30.56 29.80 　 83 79.26 78.50 　 134 127.96 127.20
              33 31.51 30.75 　 84 80.21 79.45 　 135 128.92 128.15
              34 32.47 31.71 　 85 81.17 80.41 　 136 129.87 129.11
              35 33.42 32.66 　 86 82.12 81.36 　 137 130.83 130.06
              36 34.38 33.62 　 87 83.08 82.32 　 138 131.78 131.02
              37 35.33 34.57 　 88 84.03 83.27 　 139 132.74 131.97
              38 36.29 35.53 　 89 84.99 84.23 　 140 133.69 132.93
              39 37.24 36.48 　 90 85.94 85.18 　 141 134.65 133.88
              40 38.20 37.44 　 91 86.90 86.14 　 142 135.60 134.84
              41 39.15 38.39 　 92 87.85 87.09 　 143 136.55 135.79
              42 40.11 39.35 　 93 88.81 88.05 　 144 137.51 136.75
              43 41.06 40.30 　 94 89.76 89.00 　 145 138.46 137.70
              44 42.02 41.25 　 95 90.72 89.96 　 146 139.42 138.66
              45 42.97 42.21 　 96 91.67 90.91 　 147 140.37 139.61
              46 43.93 43.16 　 97 92.63 91.87 　 148 141.33 140.57
              47 44.88 44.12 　 98 93.58 92.82 　 149 142.28 141.52
              48 45.84 45.07 　 99 94.54 93.78 　 150 143.24 142.48
              49 46.79 46.03 　 100 95.49 94.73 　 　 　 　
              50 47.75 46.98 　 101 96.45 95.69 　 　 　 　
              51 48.70 47.94 　 102 97.40 96.64 　 　 　 　
              52 49.66 48.89 　 103 98.36 97.60 　 　 　 　
              53 50.61 49.85 　 104 99.31 98.55 　 　 　 　
              54 51.57 50.80 　 105 100.27 99.51 　 　 　 　
              55 52.52 51.76 　 106 101.22 100.46 　 　 　 　
              56 53.48 52.71 　 107 102.18 101.42 　 　 　 　
              57 54.43 53.67 　 108 103.13 102.37 　 　 　 　
              58 55.39 54.62 　 109 104.09 103.33 　 　 　 　
              59 56.34 55.58 　 110 105.04 104.28 　 　 　 　
              60 57.30 56.53 　 111 106.00 105.24 　 　 　 　
              　 　 　 　 　 　 　 　 　 　 　
              　 　 　 　 　 　 　 　 　 　 　
              　 　 　 　 　 　 　 　 　 　 　
              　 　 　 　 　 　 　 　 　 　 　
              　 　 　 　 　 　 　 　 　 　 　
              　 　 　 　 　 　 　 　 　 　 　
              　 　 　 　 　 　 　 　 　 　 　
              　 　 　 　 　 　 　 　 　 　 　
              　 　 　 　 　 　 　 　 　 　 　

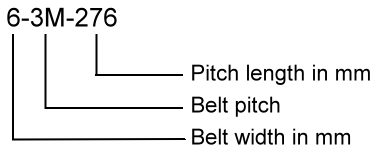

            • 6-3M-276
